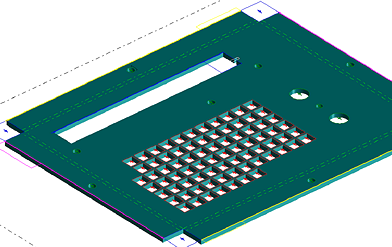

SmartCAM Advanced Fabrication™ CAM software creates optimized toolpath and code for a variety of CNC fabrication machines, including punches, burners, lasers, waterjets, punch/plasma, and punch/laser combinations. Not only will SmartCAM Advanced Fabrication help you reduce scrap and improve your fabrication processes, but like all . Like all SmartCAM™ applications, Advanced Fabrication is designed to help you reduce your programming time and deliver your customer's parts quicker.

Ease of Use
SmartCAM applications operate on Microsoft® Windows 8® Professional (Note: runs as a desktop application, not as a Windows 8 Metro application), Microsoft® Windows 7® Professional, Microsoft®reg; Windows Vista® Business, (NOTE: SmartCAM is no longer supported on Microsoft XP). The user interface uses manufacturing terminology and logical operation sequences that even first time users will find familiar and experienced users can apply quickly.

Shorten Part Delivery Times
SmartCAM Advanced Fabrication provides comprehensive solutions that help you get jobs done faster and shorten part delivery times, including:

Fast, flexible toolpath geometry.

Better organize your data using Containers, Show/Hide, improved Layer functions and View Filters.

Auto-indexing support for an unlimited number of tools.

Automated area clearance with spiral or zigzag routines.

Auto Tool Select searches profiles for common fabrication shapes, then searches the job operation setup file, and automatically selects tools that fit the shapes. It then creates tool path for removing material from inside the profiles using the selected tools.

The Profile Modeling Tool creates centerline tool path for a single cutting pass.

Canned cycle support for bolt hole circles and grids at any angle.

Automated folding and unfolding compensates for bend allowances and unfolds the part in a single step. (Because SmartCAM is a full 3-D system, you can modify geometry on the part before or after unfolding it.)

Automatic flat pattern layouts for HVAC transition pieces.

Toolpath optimization functions that will automatically find the most efficient tool motion.

Automatic or interactive nesting, including subroutine support that saves material. (SmartCAM will tell you if your subroutines provide optimal toolpath, giving you the choice of using them or not.)

What more should you know about SmartCAM?

Toolpath & Geometry Modeling

Toolpath Modeling is an important SmartCAM core concept.

Each of the automated Toolpath generation Processes we have summarized above contain appropriate input options and parameters that can be used to control the resulting Toolpaths.
The Processes generate single elements in the database, Process Containers in SmartCAM terminology.

Every SmartCAM license additionally includes extensive Toolpath Modeling functionality. CAD & Toolpath Elements
can be constructed, manipulated and edited using the same set of SmartCAM tools.

If you can draw it then you can code and cut it: Create a CAM‑mode line, arc or profile, for example, and CNC code is immediately available.

CAD Elements can be property‑changed to become Toolpath Elements.

Toolpath Elements can be property‑changed to become CAD Elements.

The contents of those automated Process Containers can be extracted. Every single Toolpath move then becomes available for editing if necessary, and returned to the container or not.

What is the significance of SmartCAM Toolpath Modeling to you?

SmartCAM Toolpath Modeling means that you are able to create Toolpath and CNC code to the exact and sometimes unique
needs of your CNC manufacturing business.

Toolpath Modeling is a part of what we like to refer to as The SmartCAM Difference.
Watch our two minute video - which contains audio narration - to learn just a bit more about The SmartCAM Difference:

Toolpath Verification

Every SmartCAM license at any product level is enabled with Toolpath Verification.

Toolpath motion can be verified with or without stock and fixturing. When stock is enabled the stock model is updated with the effect of every material‑removing cut.

Rapid moves through remaining stock and rapid or feed moves that cause a collision condition between any part of the tool assembly and remaining stock or fixturing can be flagged and clearly marked on the verification model.

Standard and custom cutting tools and holders can be included in the verification.

The resulting stock model can be saved and used as the stock for subsequent component operations.

Using CAD Drawings and Solid Models in SmartCAM

All SmartCAM licenses can read and write wireframe, surface and solid CAD files using ACIS SAT, STEP, IGES, DXF or DWG
file formats.

Additionally, native CAD file translators are available at an additional cost that read SOLIDWORKS® .SLDPRT,
Autodesk® Inventor® .IPT files, Solid Edge® .PAR and .PSM part files and
ProE®/CREO® .PRT and .XPR files.

All SmartCAM applications can use CAD wireframe drawing data as reference geometry, toolpath, toolpath boundaries, stock boundaries and more.

Surface and Solid data can be read and wireframe geometry obtained from the model which can also be used for those same tasks.

Users of the higher‑level SmartCAM applications can model Toolpaths directly using the solid model.

The SmartCAM Code Generator (aka Post Processor)

Why buy a CAM system in the first place?

The single‑most important reason for investing in any CAM system is to enable you to quickly and easily generate high quality and reliable CNC Code for your CNC machining operations.

We could take up so much of your time in telling you every detail about the CNC code‑creation functionality delivered in every SmartCAM license, but
as enthusiastic about our solutions as we are, this is not the place for us to do that.

But we would like to let you know that The SmartCAM Code Generator tools delivered with every single SmartCAM license are probably the most open and flexible in the CAM world.

They are not inaccessible black boxes but are based upon open formatting, output control and logic functions that enable SmartCAM users to modify and fine‑tune outputs to their precise needs.

%

O1888

N100 T01000

N105 G28 U0 V0 W0

N110 G95 G80 G40

N115 (MAIN SPINDLE)

N120 G54

N125 (UPPER TURNING)

N130 M6 T01000

N135 G28 U0 W0 V0

N140 M5

N145 M62

N150 T01001

N155 G50 S1500

N160 G96 S275 M3

N165 M08

N170 G00 X101.6 Z20.4

N175 X45.2 Z1.1

N180 Z0.5

N185 G01 X-1.6 F0.2

N190 Z1.0

N195 G00 X45.2 Z1.1

N200 Z0.0

N205 G01 X-1.6

N210 Z0.5

N215 G00 Z1.1

N220 X45.6 Z2.1

N225 X44.124

N230 G01 Z-34.825

N235 X45.4

N240 G00 X45.6 Z2.1

N245 X38.124

N250 G01 Z-34.825

N255 X44.124

N260 G00 X44.324 Z2.1

N265 X32.124

N270 G01 Z-15.775

N275 X32.709

N280 G03 X35.325 Z-17.083 R1.308

N285 G01 Z-34.825

N290 X38.124

N295 G00 X38.324 Z2.1

N300 X26.124

N305 G01 Z-15.775

N310 X32.124

N315 G00 X32.324 Z2.1

N320 X20.124

N325 G01 Z-0.134

N330 X22.625 Z-1.385

N335 Z-15.775

N340 X26.124

N345 G00 X45.6

N350 Z2.1

N355 X101.6 Z20.4

N360 T02000

N365 G28 U0 V0 W0

N370 G95 G80 G40

N375 (MAIN SPINDLE)

N380 G54

N385 (UPPER TURNING)

N390 M6 T02000

N395 G28 U0 W0 V0

N400 M5

N405 M62

N410 T02002

N415 G50 S1500

N420 G96 S325 M3

N425 M08

N430 M100

N435 G00 X101.6 Z20.4

N440 X17.13 Z1.297

N445 G01 X19.959 Z-0.117 F0.1

N450 X22.225 Z-1.25

N455 Z-15.875

N460 X33.109

N465 G03 X34.925 Z-16.783 R0.908

N470 G01 Z-34.925

N475 X43.69

N480 X47.69

N485 G00 X47.89 Z-34.888

N490 X101.6 Z20.4

N495 M105

N500 T03000

N505 G28 U0 V0 W0

N510 G94 G80 G40

N515 (MAIN SPINDLE)

N520 G54

N525 (UPPER MILLING)

N530 M6 T03000

N535 G28 U0 W0 V0

N540 M5

N545 M61

N550 M35

N555 T03003

N560 G97 S2000 M33

N565 M08

N570 (INDEX PLANE MC0B0)

N575 G54

N580 G00 X101.6 Y0.0 Z20.4 C0.0 B0.0

N585 (INDEX PLANE MC90B0)

N590 G54

N595 G00 X101.6 Y0.0 Z20.4 C90.0 B0.0

N600 Y25.554 Z-0.638

N605 X15.875

N610 G01 Y15.554 F175.0

N615 Y-15.554

N620 Y-25.554

N625 Z-10.638

N630 Y-15.554

N635 Y15.554

N640 Y25.554

N645 G00 X60.0

N650 Y0.0

N655 (INDEX PLANE MC90B30)

N660 G54

N665 G368 X0 Z0 D0 B-60.0

N670 G00 X17.215 Y0.0 Z19.692 C90.0 B-60.0

N675 Z30.0

N680 X9.001 Y25.554

N685 Z0.0

N690 G01 Y15.554

N695 Y-15.554

N700 Y-25.554

N705 G00 Z30.0

N710 Y0.0

N715 G369

N720 (INDEX PLANE MC270B0)

N725 G54

N730 G00 X9.001 Y0.0 Z30.0 C270.0 B0.0

N735 X60.0

N740 Y25.554 Z-1.128

N745 X15.875

N750 G01 Y15.554

N755 Y-15.554

N760 Y-25.554

N765 Z-11.128

N770 Y-15.554

N775 Y15.554

N780 Y25.554

N785 G00 X60.0

N790 Y0.0

N795 (INDEX PLANE MC270B30)

N800 G54

N805 G368 X0 Z0 D0 B-60.0

N810 G00 X17.215 Y0.0 Z19.692 C270.0 B-60.0

N815 Z30.0

N820 X9.001 Y25.554

N825 Z0.0

N830 G01 Y15.554

N835 Y-15.554

N840 Y-25.554

N845 G00 Z30.0

N850 Y0.0

N855 G369

N860 (INDEX PLANE MC0B0)

N865 G54

N870 G00 X9.001 Y0.0 Z30.0 C0.0 B0.0

N875 X101.6 Z20.4

N880 T04000

N885 G28 U0 V0 W0

N890 G94 G80 G40

N895 (MAIN SPINDLE)

N900 G54

N905 (UPPER MILLING)

N910 M6 T04000

N915 G28 U0 W0 V0

N920 M5

N925 M61

N930 M35

N935 T04004

N940 G97 S3000 M33

N945 M08

N950 G00 X101.6 Y0.0 Z20.4 C0.0

N955 (INDEX PLANE MC270B0)

N960 G54

N965 G00 X101.6 Y0.0 Z20.4 C-270.0 B0.0

N970 G87 Y0.0 Z-7.938 X7.429 R19.875 P200 F50.0

N975 G80

N980 (INDEX PLANE MC90B0)

N985 G54

N990 G00 X19.875 Y0.0 Z-7.938 C-90.0 B0.0

N995 X60.0

N1000 G87 X7.429 R19.875

N1005 G80

N1010 (INDEX PLANE MC90B30)

N1015 G54

N1020 G368 X0 Z0 D0 B-60.0

N1025 G00 X14.515 Y0.0 Z22.03 C-90.0 B-60.0

N1030 Z30.0

N1035 G83 X0.0 Z-3.683 R2.0

N1040 G80

N1045 G369

N1050 (INDEX PLANE YZ_PLANE)

N1055 G54

N1060 G00 X0.0 Y0.0 Z2.0 C-0.0 B0.0

N1065 X60.0

N1070 G87 Y-25.4 Z0.0 X23.825 R38.925

N1075 G80

N1080 (INDEX PLANE MC270B30)

N1085 G54

N1090 G368 X0 Z0 D0 B-60.0

N1095 G00 X38.925 Y-25.4 Z0.0 C-270.0 B-60.0

N1100 Z30.0

N1105 G83 X0.0 Y0.0 Z-3.683 R1.492

N1110 G80

N1115 G369

N1120 (INDEX PLANE MC0B0)

N1125 G54

N1130 G00 X0.0 Y0.0 Z1.492 C0.0 B0.0

N1135 X101.6 Z20.4

N1140 M110

N1145 T09000

N1150 G28 U0 V0 W0

N1155 G95 G80 G40

N1160 (MAIN SPINDLE)

N1165 G54

N1170 (UPPER TURNING)

N1175 M6 T09000

N1180 G28 U0 W0 V0

N1185 M5

N1190 M62

N1195 T09009

N1200 G50 S1500

N1205 G96 S175 M3

N1210 M08

N1215 G00 X-0.4 Z-80.6

N1220 M115

N1225 G00 X19.646 Z1.8

N1230 G01 Z1.587 F0.1

N1235 G00 Z-1.8

N1240 X15.682

N1245 G01 Z1.587

N1250 G00 Z-1.8

N1255 X11.718

N1260 G01 Z1.587

N1265 G00 Z-1.8

N1270 X7.755

N1275 G01 Z1.587

N1280 G00 Z-1.8

N1285 X3.791

N1290 G01 Z1.587

N1295 G00 Z-1.8

N1300 G00 X-0.4 Z80.6

N1305 M120 (WAIT)

N1310 M125 (WAIT)

N1315 T06000

N1320 G28 U0 V0 W0

N1325 G94 G80 G40

N1330 (MAIN SPINDLE)

N1335 G54

N1340 (UPPER MILLING)

N1345 M6 T06000

N1350 G28 U0 W0 V0

N1355 M5

N1360 M61

N1365 M35

N1370 T06006

N1375 G97 S2500 M33

N1380 M08

N1385 G00 X101.6 Y0.0 Z20.4 C0.0

N1390 (INDEX PLANE MC90B30)

N1395 G54

N1400 G368 X0 Z0 D0 B-60.0

N1405 G00 X101.6 Y0.0 Z20.4 C90.0 B-60.0

N1410 Z10.0

N1415 G83 X0.0 Y0.0 Z-3.81 R1.492 F175.0

N1420 G80

N1425 G369

N1430 (INDEX PLANE MC270B30)

N1435 G54

N1440 G368 X0 Z0 D0 B-60.0

N1445 G00 X0.0 Y0.0 Z1.492 C270.0 B-60.0

N1450 Z10.0

N1455 G83 X0.0 Y0.0 Z-3.81 R1.492

N1460 G80

N1465 G369

N1470 (INDEX PLANE MC0B0)

N1475 G54

N1480 G00 X0.0 Y0.0 Z1.492 C0.0 B0.0

N1485 X101.6 Z20.4

N1490 T07000

N1495 G28 U0 V0 W0

N1500 G94 G80 G40

N1505 (MAIN SPINDLE)

N1510 G54

N1515 (UPPER MILLING)

N1520 M6 T07000

N1525 G28 U0 W0 V0

N1530 M5

N1535 M61

N1540 M35

N1545 T07007

N1550 G97 S3000 M33

N1555 M08

N1560 G00 X101.6 Y0.0 Z20.4 C0.0

N1565 (INDEX PLANE YZ_PLANE)

N1570 G54

N1575 G00 X33.42 Y-25.4 Z0.0 C0.0 B0.0

N1580 G87 Y-25.4 Z0.0 X-5.474 R37.42 F300.0

N1585 G80

N1590 (INDEX PLANE MC0B0)

N1595 G54

N1600 G00 X101.6 Y0.0 Z20.4 C0.0 B0.0

N1605 T05000

N1610 G28 U0 V0 W0

N1615 G94 G80 G40

N1620 (MAIN SPINDLE)

N1625 G54

N1630 (UPPER MILLING)

N1635 M6 T05000

N1640 G28 U0 W0 V0

N1645 M5

N1650 M61

N1655 M35

N1660 T05005

N1665 G97 S2750 M33

N1670 M08

N1675 G00 X101.6 Y0.0 Z20.4 C0.0

N1680 (INDEX PLANE MC90B0)

N1685 G54

N1690 G00 X101.6 Y0.0 Z20.4 C90.0 B0.0

N1695 G87 Y0.0 Z-7.938 X-19.367 R19.367 F275.0

N1700 G80

N1705 (INDEX PLANE MC0B0)

N1710 G54

N1715 G00 X19.367 Y0.0 Z-7.938 C-0.0 B0.0

N1720 X101.6 Z20.4

N1725 M130 (WAIT)

N1730 M135

N1735 M09

N1740 G28 U0 V0 W0 M35

N1745 M01

N1750 M30

%

%

O2888

N100 T08000

N105 G28 U0 V0 W0

N110 G95 G80 G40

N115 (SUB SPINDLE)

N120 G55

N125 (LOWER TURNING)

N130 M6 T08000

N135 G28 U0 W0 V0

N140 M105

N145 M162

N150 T08008

N155 G50 S1500

N160 G96 S350 M103

N165 M08

N170 M100

N175 G00 X100.8 Z-19.2

N180 X49.0 Z-3.0

N185 Z0.635

N190 G01 X31.214 F0.1

N195 G02 X31.176 Z0.532 R16.275

N200 X29.891 Z0.0 R0.654

N205 G01 X-1.3

N210 Z-1.0

N215 G00 Z-3.0

N220 X100.8 Z-19.2

N225 M105

N230 M110 (WAIT)

N235 T11000

N240 G28 U0 V0 W0

N245 M212

N250 G94 G80 G40

N255 (MAIN SPINDLE)

N260 G54

N265 (LOWER MILLING)

N270 M6 T11000

N275 G28 U0 W0 V0

N280 M5

N285 M61

N290 M35

N295 T11011

N300 G97 S3000 M33

N305 M08

N310 (INDEX PLANE MC0B0)

N315 G54

N320 G00 X101.6 Y0.0 Z80.4 C0.0

N325 (INDEX PLANE SUB_XY)

N330 G55

N335 G00 X101.6 Y0.0 Z-19.6 C0.0

N340 Z-20.0

N345 G83 X0.0 Y0.0 Z3.683 R-0.413 P200 F50.0

N350 G80

N355 G00 X101.6 Z-19.6

N360 (INDEX PLANE MC0B0)

N365 G54

N370 G00 X101.6 Y0.0 Z80.4 C0.0

N375 C0.0

N380 M115 (WAIT)

N385 M120 (WAIT)

N390 T10000

N395 G28 U0 V0 W0

N400 G94 G80 G40

N405 (MAIN SPINDLE)

N410 G54

N415 (LOWER MILLING)

N420 M6 T10000

N425 G28 U0 W0 V0

N430 M5

N435 M61

N440 M35

N445 T10010

N450 G97 S3500 M33

N455 M08

N460 G00 X101.6 Y0.0 Z80.4 C0.0

N465 (INDEX PLANE SUB_XY)

N470 G55

N475 G00 X101.6 Y0.0 Z-19.6 C0.0

N480 G83 X0.0 Y0.0 Z12.346 R0.096 F175.0

N485 G80

N490 G00 X101.6 Z-19.6

N495 (INDEX PLANE MC0B0)

N500 G54

N505 G00 X101.6 Y0.0 Z80.4 C0.0

N510 M125 (WAIT)

N515 M130 (WAIT)

N520 T12000

N525 G28 U0 V0 W0

N530 G94 G80 G40

N535 (MAIN SPINDLE)

N540 G54

N545 (LOWER MILLING)

N550 M6 T12000

N555 G28 U0 W0 V0

N560 M5

N565 M61

N570 M35

N575 T12012

N580 G97 S2000 M33

N585 M08

N590 G00 X101.6 Y0.0 Z80.4 C0.0

N595 (INDEX PLANE SUB_XY)

N600 G55

N605 G00 X101.6 Y0.0 Z-19.6 C0.0

N610 X75.19 C34.33

N615 Z7.35

N620 G22 X53.434 C-18.701 F175.0

N625 G22 X49.773 C-11.871 R5.0

N630 G22 X61.358 C-1.838

N635 G22 X61.398 C8.128 R10.0

N640 G22 X44.828 C22.478

N645 G22 X27.543 C27.475 R10.0

N650 G22 X-27.525

N655 G22 X-44.811 C22.493 R10.0

N660 G22 X-61.358 C8.162

N665 G22 C-1.838 R10.0

N670 G22 X-33.827 C-25.681

N675 G22 X-16.534 C-30.663 R10.0

N680 G22 X16.527

N685 G22 X33.829 C-25.679 R10.0

N690 G22 X49.773 C-11.871

N695 G22 X63.434 C-10.041 R5.0

N700 G22 X72.094 C-12.541

N705 G13.1

N710 G00 Z-10.0

N715 X101.6 Z-19.6 C-0.0

N720 (INDEX PLANE MC0B0)

N725 G54

N730 G00 X101.6 Y0.0 Z80.4 C-0.0

N735 M135

N740 M09

N745 G28 U0 V0 W0 M135

N750 M01

N755 M30

%

Code Generators are most often created using an existing SmartCAM library code generators as a template. Naturally - as with any software that is new to you - there is a learning curve before you can fully understand
the tools and how to apply them. If you prefer to concentrate on producing parts then a chargeable code‑generation consultancy service is available.

The SmartCAM Customization ToolKit

Customize, extend and automate SmartCAM for yourself.

Referred to as The SmartCAM CTK by the SmartCAM community.

SmartCAM is effectively greater than the sum of its parts. It's kind of difficult to convey, but we'll try to explain.

SmartCAM is designed and created by engineers for engineers: we know a lot about CNC machines, CNC Machining and CNC Code. The tools in SmartCAM are comprehensive and flexible.

The SmartCAM community rates the fact that if you were to hit an apparent limitation then there is usually a technique that can be used in SmartCAM to deliver exactly what it is that is required. We know that SmartCAM users would not have it any other way.

That does not mean that SmartCAM delivers functionality for every specific and uniquely detailed application of CAM for every applications case for every CAM engineer in every CNC manufacturing facility anywhere in the world. We wouldn't dare claim to do that, and no credible supplier of CAM software can guarantee to do so.

But the SmartCAM Customization Kit is another of our open set of tools delivered with every SmartCAM license that can be used to, well, customize your use of SmartCAM.

A manufacturer of volume parts used in the hydraulic and pneumatic industries, for example, would benefit from parameterized family of part programming that could be created using the SmartCAM CTK.
Customization can flawlessly produce Toolpath, CNC code and other outputs time and time again. In fact we know that customers who have created such customization seldom bother to check graphical Toolpaths or code. It works, every time.

A further example scenario for application of the SmartCAM CTK is in automating small‑ or large‑scale tasks that are specific to your CNC manufacturing procedures, machines and personnel when necessary. Your setup and work practices may, for example, require you to frequently apply tasks or sequences of tasks that are not in the box of any CAM system.
