SmartCAM V19.0: Creating User-Defined Machining Regions

A new User Region creation tool allows custom, closed machining regions to be defined from specified Part and Stock profile geometry sets.

User Regions created for solid model features from surface boundaries
User Regions created for solid model features from surface boundaries.



Watch the "Creating & Machining User Regions (with Part Offset Machining) in SmartCAM V19" Video



Create User Regions - V19.0

Building on the region concept introduced in version 18 for rest machining, version 19 provides a new User Region modeling tool that allows custom region elements to be defined for virtually any feature. Region elements are 2D closed boundaries comprised of "Part" and/or "Stock" profiles, and used as input to the Region Rough process. Regions can be comprised of all Part, all Stock, or a mixture of Part and Stock on the outer boundary, and may contain any number of inner Part and/or Stock profiles.

Region panel provides numerous methods for defining the Part and Stock profile input
Region panel provides numerous methods for defining the Part and Stock profile input.



The Region Rough process uses the additional Part and Stock profile information in order to offset the boundary and generate efficient toolpath to machine the region.

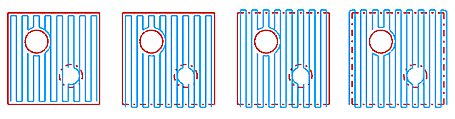

Various features configurations defined by user regions. Notice how Region Rough Zigzag toolpath starts and ends each pass on the outside of the dashed Stock profiles
Various features configurations defined by user regions. Notice how Region Rough Zigzag toolpath starts and ends each pass on the outside of the dashed Stock profiles.



This feature provides maximum control when defining roughing toolpath. When used in conjunction with the new Part Offset path type, the number of slotting cuts and plunges into material are greatly reduced. Wherever possible, cuts start and end outside the stock boundary.

User Region defined with closed Part profile inside closed Stock profile
User Region defined with closed Part profile inside closed Stock profile.
